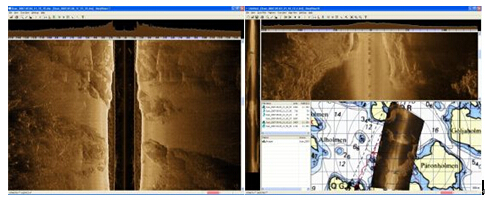

Portable Side Scan Sonar |
||||
|
||||
| Sonar Model | DE3468D | DE340D | DE680D | DE680SAR |
| Technology | Dual Chirp Digital | Chirp Digital | Chirp Digital | Chirp Digital |
| Frequency |
Dual 340/680 kHz range/resolution optimized |
340 kHz Center range/resolution optimized |
680kHz Center range/resolution optimized |
680 kHz Center range/resolution optimized |
| Horizontal beamwidth | 0.9º/0.5º | 0.9º | 0.5º | 0.9º |
| Vertical beamwidth | 60º/60º | 60º | 60º | 60º |
| Range |
25 to 200 / 10 to 100 m 82 to 656 / 33 to 328 feet |
15 to 200 m 49 to 656 feet |
10 to 100 m 33 to 328 feet |
5 to 50 m 16 to 164 feet |
| Range resolution |
1.5/1 cm 0.59/0.39 inch |
1.5 cm 0.59 inch |
1 cm 0.39 inch |
5 mm 0.2 inch |
| Max operating depth |
100 m 328 feet |
100 m 328 feet |
100 m 328 feet |
100 m 328 feet |
| Max cable length |
200+ m 656 feet |
200+ m 656 feet |
200+ m 656 feet |
200+ m 656 feet |
| Interface | RS485, GND, Supply, Fischer 103 DEE 4 | RS485, GND, Supply, Fischer 103 DEE 4 | RS485, GND, Supply, Fischer 103 DEE 4 | RS485, GND, Supply, Fischer 103 DEE 4 |
| Length |
850 mm 33.5 inch |
850 mm 33.5 inch |
850 mm 33.5 inch |
850 mm 33.5 inch |
| Diameter |
60 mm 2.36 inch |
60 mm 2.36 inch |
60 mm 2.36 inch |
60 mm 2.36 inch |
| Weight |
9 kg 19.8 pounds |
9 kg 19.8 pounds |
9 kg 19.8 pounds |
9 kg 19.8 pounds |
| Weight in water |
6.7 kg 14.8 pounds |
6.7 kg 14.8 pounds |
6.7 kg 14.8 pounds |
6.7 kg 14.8 pounds |
| Materials | Stainless steel, PVC and Polyurethane | Stainless steel, PVC and Polyurethane | Stainless steel, PVC and Polyurethane | Stainless steel, PVC and Polyurethane |
Ultra Light Weight Portable Side Scan Sonar System |
||
|
||
| Sonar Model | LE340 | |
| Technology | Dual Chirp Digital | |
| Frequency |
340 kHz range/resolution optimized |
|
| Horizontal beamwidth | 1.2º | |
| Vertical beamwidth | 60º | |
| Range |
20 to 130 m 49 to 426 feet |
|
| Range resolution |
[Range]/1000 at HR [Range]/500 at LR |
|
| Max operating depth |
20 m 65 feet |
|
| Max cable length |
20 m 65 feet |
|
| Interface | USB | |
| Length |
670 mm 26.5 inch |
|
| Diameter |
50 mm 1.97 inch |
|
| Weight |
3.5 kg 7.7 pounds |
|
| Weight in water |
2.2 kg 4.9 pounds |
|
| Materials | Stainless steel, PVC and Polyurethane | |
Hull Mounted Side Scan Sonar System |
||
|
||
| Sonar Model | HM340D | HM680D |
| Technology | Chirp Digital | Chirp Digital |
| Frequency |
340 kHz Center range/resolution optimized |
680kHz Center range/resolution optimized |
| Horizontal beamwidth | 0.9º | 0.5º |
| Vertical beamwidth | 60º | 60º |
| Range |
15 to 200 m 49 to 656 feet |
10 to 100 m 33 to 328 feet |
| Range resolution |
1.5 cm 0.59 inch |
1 cm 0.39 inch |
| Interface | RS485, GND, Supply, Fischer 103 DEE 4 | RS485, GND, Supply, Fischer 103 DEE 4 |
