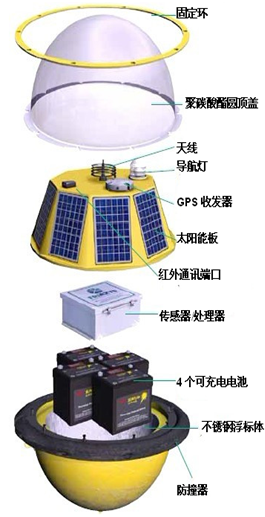

TRIAXYS precise measurements of directional wave buoywave, simple to use. The wave sensor unit includes a TRIAXYS processor three accelerometers, three rotatinggyroscope and a flux gate compass and patents. TRIAXYS directional wave buoy the economy strong to severeenvironment resistance in the process of operation, such as severe impact, rotation and temporary sink. Stainless steel shell buoy has very high strength to weight ratio,provide safe mooring and floating ring. Transparent polycarbonate dome remove crash proof cover, can see the module buoy. Dome cover made of transparent material, sunlight to the solar panel, but also guarantee a lower profile, anti impact. Extreme environmental or geographical location and reliable operation 5 years of life of rechargeable battery

Support any telemetry technology

Data storage capacity of more than 5 years.

Continuous wave sampling

Physical parameters

Physical parameters

Diameter: 0.91 meters, 1.1 meters including bumper

Weight (including four batteries): 197kg

Weight (without battery): 90kg

Light: Amber LED.

Programmable sequential flashing, within 3 miles of the visible

Programmable sequential flashing, within 3 miles of the visible

Texture of material Case: stainless steel

Dome: impact resistant polycarbonate

The fixed ring: stainless steel

Sensor / processor

Sensor / processor

Processor: WatchMan500

Water temperature: Thermilinear composite network

Accelerometer: Flexure suspension servo (range: 2G)

Rate: Piezoelectric vibrating gyroscope (maximum speed of± 80 ° /s)

Magnetic Compass: fluxgate microprocessor controlled(accuracy of ± 0.5 °)

Magnetic Compass: fluxgate microprocessor controlled(accuracy of ± 0.5 °)

GPS:12 channel

Power supply system

Working voltage: 11~19.6VDC

Battery: rechargeable lead-acid battery, 4 sets of solar panels to power supply of 12V, 100 AMP

Solar panel: 10 block, 6 Watt

Sensitive charger: Sunsaver-6

External power on / off switch: the magnetic key pulledopen the buoy

The telemetry option

VHF; INMARSAT D＋; IRIDIUM;
