BlueView 3D Mechanical Scanning Sonar
Update: 2014/12/18 View:
- Brand: Teledyne
- Type: BV5000
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Introduction

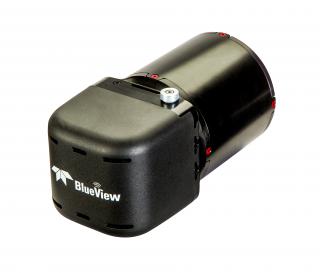

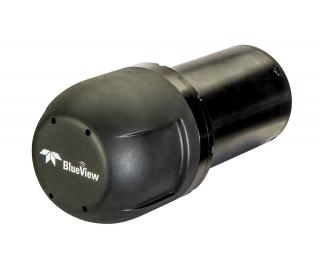

BlueView's BV5000-1350 and BV5000-2250 3D mechanical scanning sonar create high resolution imagery of underwater areas, structures, and objects. With the touch of a button, these new 3D mechanical scanning sonar create 3D point clouds of an underwater scene with minimal training required. The compact, lightweight units are easily deployed on a tripod or an ROV. The scanning sonar head and integrated mechanical pan and tilt mechanism generate both sector scans and spherical scan data. For the first time, get 3D laser-like scanning capabilities underwater, even in low and zero visibility conditions and seamless integration with traditional laser scan imagery.

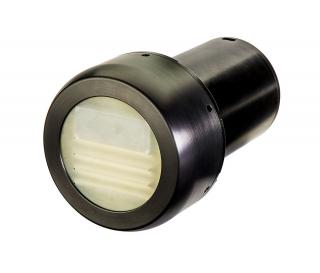

- 3D sonar head (1.35 or 2.25 MHz)

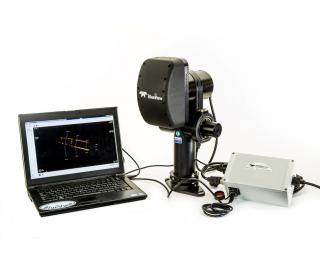

- Pan & Tilt with mounting hardware
- Sonar/Pan & Tilt junction box
- Shipping case
- Accessory Kit - Retract-A-Bit Hex Driver; 7 ft. Cat 5 Ethernet Cable; 15 ft. Sonar/Pan & Tilt Cable; 2 m USB Cable; 15A US Power Cord; RS485 to USB Driver CD; ProScan 3.9 (or current) + BlueViewer
- BV5000 User Handbook
- Quick Start Guide
- 1 year warranty
Specifications
| BV5000-1350 | BV5000-2250-N / 2250-W | |
|---|---|---|
| Sonar & Software | ||
| Sector/Spherical Scan Area (°): | 45 - 360 | 45 - 360 |
| Sonar Field of View (°): | 45 x 1 | 42 x 1 / 80 x 1 |
| Update Rate (Hz): | Up to 40 | Up to 40 |
| Frequency (MHz): | 1.35 | 2.25 |
| Maximum Range: | 30 m (98 ft.) | 10 m (32 ft.) |
| Optimum Range: | 1 - 20 m (3.2 - 65 ft.) | 0.5 - 7 m (1.6 - 23 ft.) |
| Number of Beams: | 256 | 256 |
| Beam Width (°): | 1 x 1 | 1 x 1 |
| Beam Spacing (°): | 0.18 | 0.18 |
| Time Resolution: | 0.015 m (0.59 in.) | 0.010 m (0.39 in.) |
| Data Output Format: | .son, .off, and .xyz files | .son, .off, and .xyz files |
| Mechanical | ||
| Size (L x W x H in inches): | 10.5 x 9.2 x 15.4 | 8.9 x 8.6 x 15.4 |
| Weight in Air/Water (lbs.): | 21.7/8.2 | 19.1/6.0 |
| Depth Rating: |
300 m (1,000 ft.) 4,000 m (13,123 ft.) |
300 m (1,000 ft.) 4,000 m (13,123 ft.) |
| Coms (Sonar/Pan & Tilt): | Ethernet/RS485 | Ethernet/RS485 |
| Power Consumption: | 45 max. | 45 max. |
| Power Requirement (V DC): | 20 - 29 | 20 - 29 |
